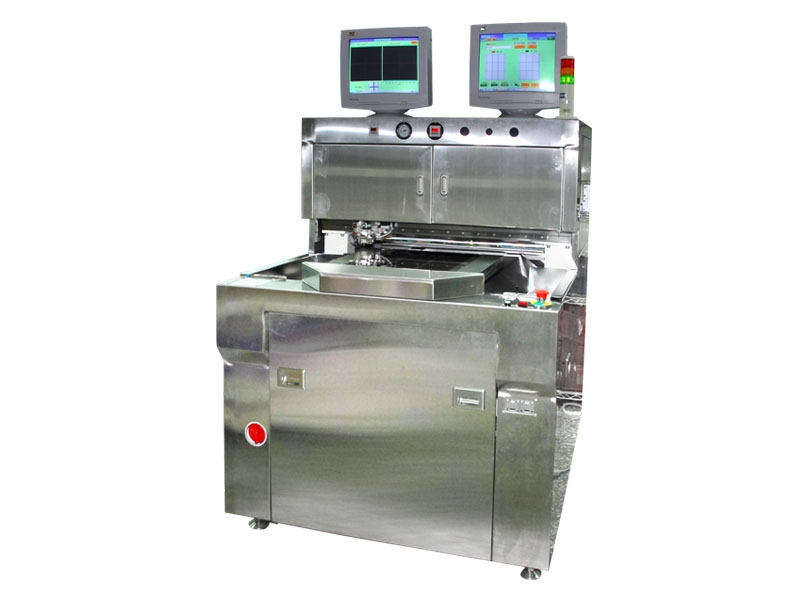

單刀頭玻璃切割機
設備用途及功能概述: 本精密玻璃切割機( Glass Precision Scriber)專為光電產業設計，如LCD、數位像機、液晶面板、手機面板、防護鏡等產業，非常適用超薄與小尺寸的特殊玻璃劃線。 採用工業級電腦系統，分別控制運動劃線及影像處理，搭配微軟視窗的人機介面，與簡易的控制面板，讓操作更簡易。 設備動作流程說明: 手動放置→真空吸附→視覺自動對位→ 0°切割→ 90°切割→真空停止→手動取出 若需二面切割，則將玻璃反面，重複以上步驟。
 |
| 項目 | 規格內容描述 |
| Equipment is used for scribing | Laminated glass into suitable size. |
| Equipment clean design | Suitable for clean room class 1000 without contamination |
| Utility |
(1) 220V AC 3-Phase 60Hz 2.3Kw (2) Compress air 4 ~ 7Kg/cm2 |
| Outline | (1700mm(L)x1200mm(W)x1750mm(H) |
| Table size | 520*520mm |
| Table stroke | 510mm |
| Glass Size | 500*500mm(Max) for t 0.3 ~t 1.1mm |
| Loading & unloading operation | Manual |
| Height of transportation operation | 900±25mm |
| Cutter type | Free type rolling cutter |
| Cutter stroke | 550mm |
| Scribing operation | Automatic |
| Scribe speed | 5 ~ 600 mm/sec |
| Scribe direction | Single direction |
| Quantity of scribe head | 1 |
| Pitch drive speed | 10 ~ 300mm/sec |
