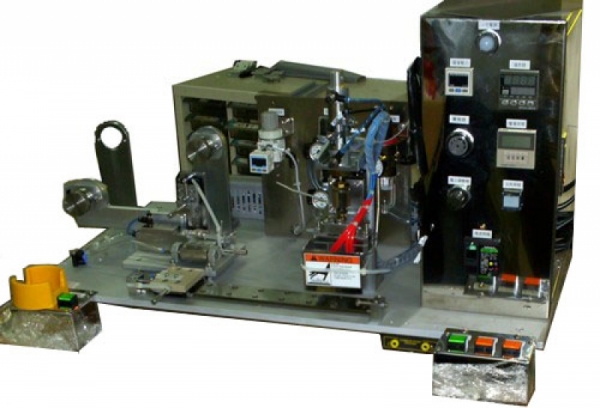

桌上型手動全切ACF貼付機
TFT LCD 液晶模組製造製程中的全切ACF貼附機規格。操作流程：TAB/COF (Manual&guide 定位)，Vacuum Switch ON，ACF attach position move (Manual定位)，ACF attach length cut，ACF attach pressing & heating，Cell unload (manual)。
 |
| 項目 | 規格內容描述 |
| 基本單元 | TAB/COF supply unit × 1 set， ACF supply unit × 1 set ， ACF attach unit × 1 set (1 head, pause heating type)。 |
| 必要附屬品 | TAB/COF治具*1個， Heat head (width:3 mm) * 1 個， Heater * 2 個。 |
| ACF attach length by per section | 15 ~ 40 mm |
| ACF width | 1.2 ~ 2.5 mm |
| Accuracy of attaching (3δ) | X：≦± 0.25 mm，Y：≦±0.1 mm |
| Heating time setting | 0.1 ~ 10 seconds. (0.1 sec step) |
| Heat head surface temperature | R.T ~ 150℃,1℃ step, accuracy : ±3℃ |
| Heat head size (L*W) | 50mm * 3.0mm |
| Heat Head surface flatness | ±5μm within head length (at setting temperature) |
