ACF全切貼付機

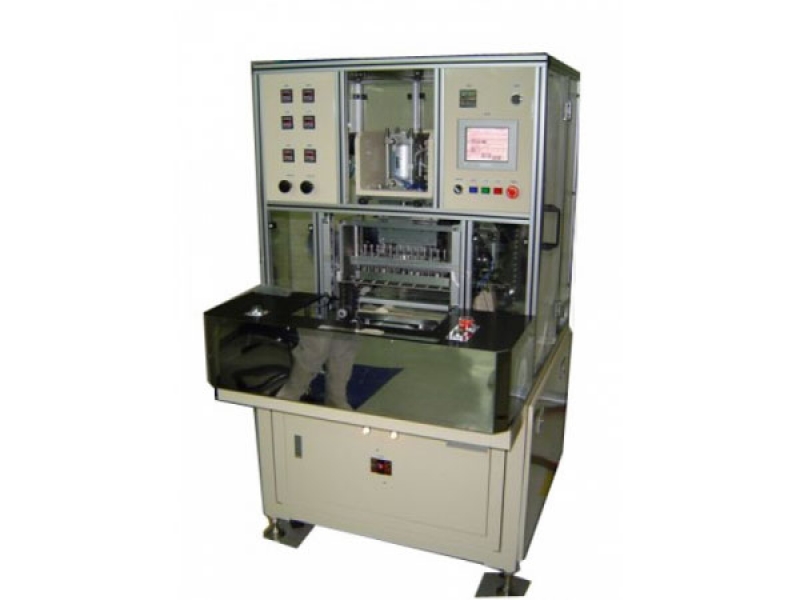

本設備為專為LCM之修理工程所規劃的ACF貼付設備，將TAB端子面回路於本設備行ACF貼付動作。移載台部分使用高精度分割器，配合感應馬達，傳動移載平台作精確壓著位置控制；TAB治具定位採用定位PIN作外形靠邊定位；壓著頭部分使用氣缸配合調壓閥作逆壓做為壓著壓力之控制；控制面板部分則採用右方獨立操作，操作簡單。
 |
| 項目 |
規格內容描述
|
| Applicable TAB (COF) thickness | 30 ~ 125μm |
| ACF width | 1.0~2.5 mm (1.2 / 2.5 mm used, 1.0/2.0 mm for spare) |
| ACF type | Two kinds of ACF, and 2 or 3 layer |
| ACF reel diameter |
ψ200 mm
|
| ACF attach length | 10~60 mm |
| ACF cutting type | Full cut |
| Work data | ≧60 Program |
| Controller unit | Mitsubishi PLC |
| Bonding accuracy | X：± 0.20mm，Y：± 0.10mm |
| Time setting | 0.1~ 20.0sec(0.1sec step) |
| Heat head temperature | Surface temperature: R.T~150℃, 1℃ step, actual head temp |
| Head over heat protection | 1.Thermocouple monitoring 2.Heater & thermocouple broken auto detect function. |
| Thrust force range | 1 ~ 15kgf, 0.1 kgf step, accuracy :≦±5%. |
| Force setting method | Setting the numeric value in precision regulator, and by side setting. |
| Display the numeric value | Digital display |
